  • DESCRIPTION

    Pick the order and let the truck drive itself

    Are you facing the challenge of high wage costs, demand for short delivery times, bottlenecks at peak periods, errors on picked orders and critical ergonomics as a result of heavier goods? Then the NCN N24 OPTIPICK is the ideal solution. It has been developed specifically to accommodate these challenges and to optimise the complete picking process.
    Use a small handheld remote control to get a Linde order picker to follow you around as you pick orders at low height. One press on the remote control activates the machine and sends it onwards to the next location. Press again and it stops. This means there's no need to return to the machine before all the orders have been picked.

  • Major time savings

    Armed with the remote control, and with both hands free, it's possible to reduce the time of every single work cycle. Solely because the operator doesn't need to operate the truck manually to move it on to the next position. Instead, the operator can focus on picking goods quickly, placing them on the pallet and moving swiftly on to the next order.

  • Increased productivity

    With the NCN N24 OPTIPICK you can increase productivity in the overall picking process. Quite simply, the job of picking orders will be quicker, easier and more flexible, allowing you to process more orders in less time. The more goods that need picking from different locations, the greater boost this solution will give your productivity.

  • Ergonomic advantages

    Less getting on and off the truck, fewer steps from machine to shelf and an easier picking cycle add up to an ergonomic plus for the operator in their daily work. The operator remains on the floor most of the time, as it only needs a light press on the remote control and the truck will follow, allowing the operator to focus exclusively on picking orders.

  • Built-in safety features

    At startup, the remote control and the machine are paired at the same frequency (via radio waves), so the operator is only able to activate the selected machine. The machine monitors the area in front of it and stops automatically if it registers any obstacles. A laser sensor along the sides stops the machine if it registers movements inside the safety distance. All solutions are certified according to the same ISO standard as AGV solutions.

  • Can be retrofitted on N20 models

    The OPTIPICK solution is not only compatible with the new Linde order picker, but can also be retrofitted on all existing Linde N20 order pickers in your fleet. This enables you to optimise the picking process on your existing N20 machines. Naturally, the technical retrofit is made after a comprehensive safety test and training in optimal use of the solution.

  • NCN N24 OPTIPICK – BENEFITS

    • Major time savings
    • Increased productivity
    • Ergonomic advantages
    • Built-in safety features
    • Can be retrofitted on N20 models

  • How NCN N24 OPTIPICK works

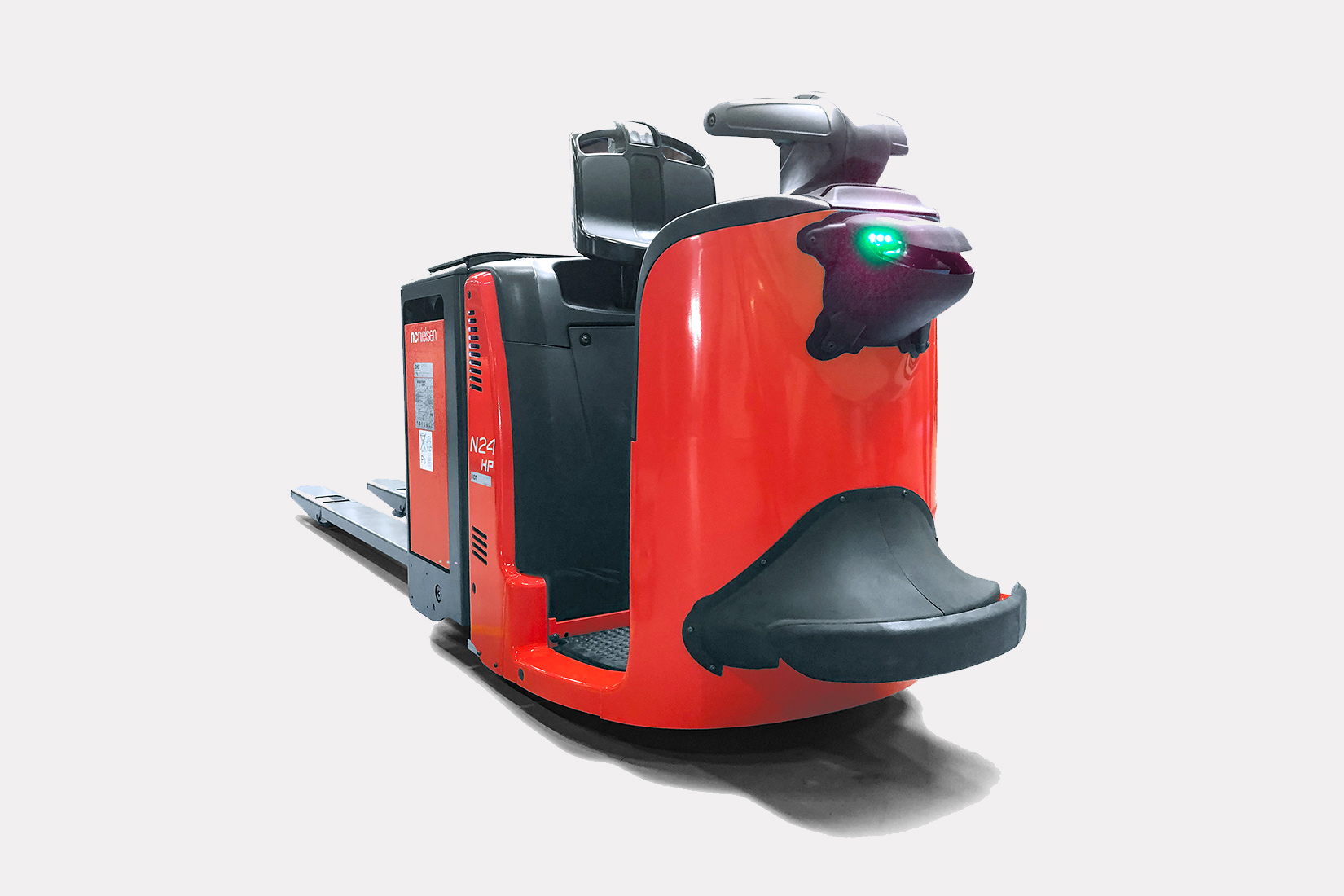

    • NCN N24 OPTIPICK is built on a Linde N20 order picker with a low lift and a capacity of 2,000 kg
    • Mount the laser sensor along the sides
    • The laser sensor monitors the area in front of the order picker
    • The order picker moves straight forwards only when activated via the remote control. A second press stops the machine

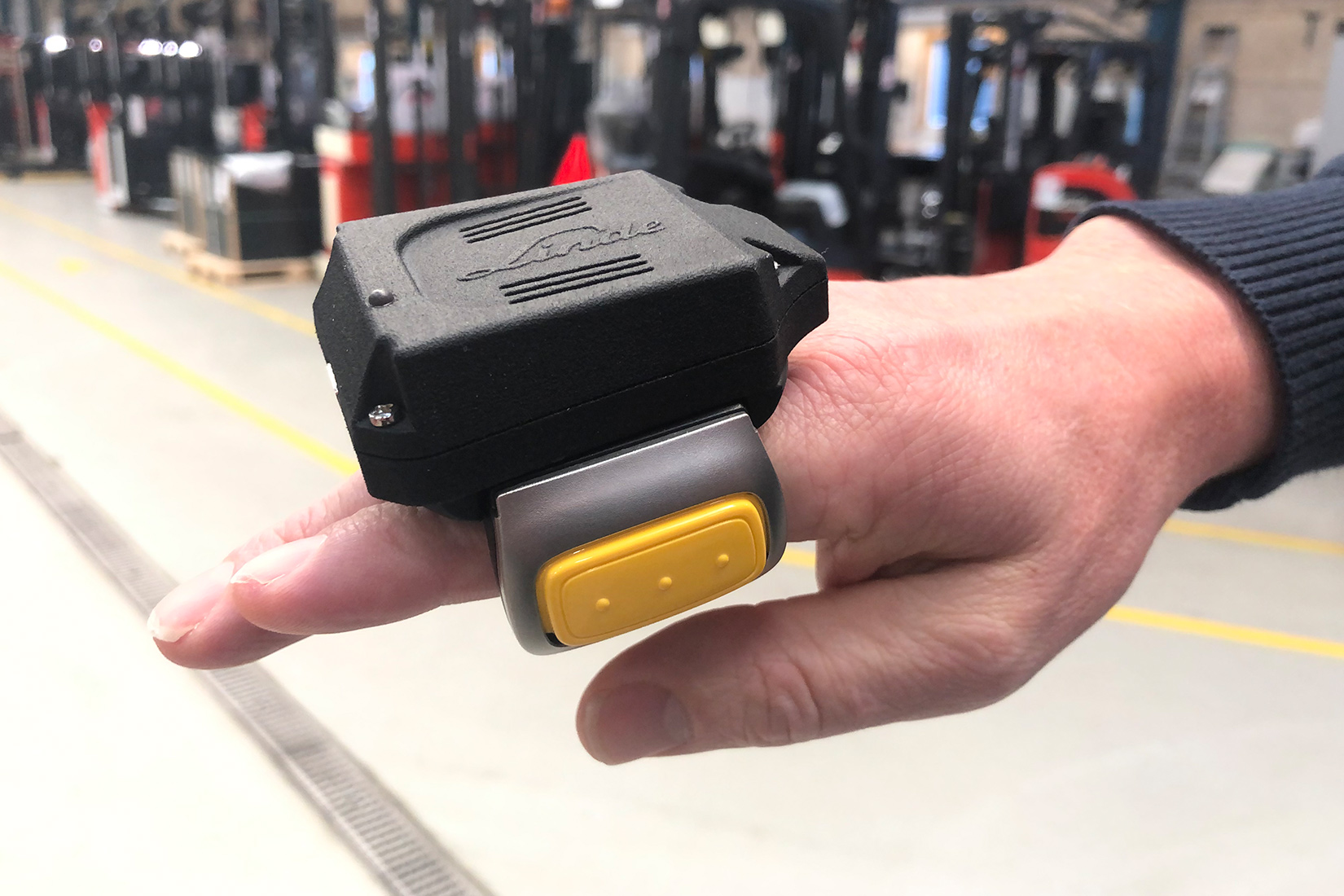

    • The remote control weighs around 100 g
    • An LED light in the remote control indicates status, power level and emergency stop
    • The remote control works at radio frequencies up to 25 m
    • Before starting to use it, you need to pair the RF device with the RF remote control
    • The solution is developed according to the ISO 3691-4: 2020 standard (just like AGV machines)
    • Can be supplied with N.C. Nielsen's proprietary Lithium-ION batteries
