Aiming high with ease.
The V modular B vertical order picker from Linde Material Handling is a powerful truck for medium order picking heights of up to 7.8 meters and payloads of up to 1,000 kilograms.
The series combines the best of the Linde order picker product family, uniting performance and cost efficiency. The spacious operator's cab offers the driver a comfortable workplace. In addition to the lower entry height compared to competitor trucks, the cab is decoupled from the chassis. Vibrations and impacts are only transmitted to the operator in a damped manner. As a result, the V modular B enables ergonomic and safe working and protects the operator from injury. The vertical order picker achieves a maximum lift speed of 0.4 m/s and a travel speed of up to 11 km/h, which additionally contributes to higher picking performance. Thanks to the modular truck concept, customers can adapt the order picker precisely to their individual requirements and, for example, choose between a 24 V and 48 V motor depending on their power needs.
The mast design of the vertical order picker allows optimum visibility for the driver and thus contributes to safe working. The required lateral barriers from a platform height of 1.2 meters are electronically monitored and protect the operator from falling. For emergencies, there is also an emergency lowering valve that is easily accessible under the rear cover, even in narrow aisles. In addition, the service technician can adapt further configurations to the conditions on site. This prevents collisions with ceilings and walls. To prevent operating errors and injuries, the driver must touch the sensors on the control unit with both hands and activate the dead man's switch in the footwell. Only then can the truck be moved. In the narrow aisle, the personal protection system with two scanners in the load and drive directions protects the operator and actively intervenes in the driving behavior.
Order picking is one of the most physically demanding tasks in the warehouse. The V modular B vertical order picker supports the operator with numerous features: In the spacious cabin, the operator can work in a relaxed manner. Depending on the requirements, many storage areas and equipment variants are available. A low parapet makes it easier to pick up and place goods. The patented ergo pad allows the operator to lean back, relieving tension on their muscles. Optional side barriers are available that tilt slightly outward, allowing the operator to reach deeper into the rack. During travel, the platform and a soft mat cushion vibrations, preventing operator fatigue. When picking, the operator stands securely on the solid surface at the edge of the cabin floor.
Thanks to the electric steering, the truck can be maneuvered easily, quickly, and precisely. The high lifting and travel speeds additionally contribute to high handling rates. At the same time, the three-phase AC motors of the Linde vertical order pickers are characterized by low energy consumption and a high residual load capacity at lifting heights of up to 7.8 meters.
The Linde vertical order picker is designed to be service-friendly all around: The central components are easily accessible behind a panel. The travel and lift motors are encapsulated and thus protected from dust and dirt. This means less downtime for repairs and maintenance. Service technicians can read out and check all central data via the CAN bus interface.

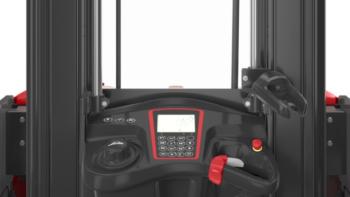

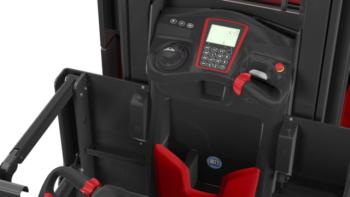

The control panel can optionally be mounted at the load end or at the load and mast end – the operating logic is maintained.
Items such as terminals, scanners, clipboards, writing supports, or individual fixtures can be fitted. The attachment bars are mounted on the left and right-hand side of the mast as well as at the load end on the overhead guard.
The load area is secured with a protective cage. It is therefore safe for the user to access the area and pick orders from here.
The Linde BlueSpot increases safety during operation, as the LED spotlight makes trucks silently visible.
Large mirrors in both directions as well as work lights support the operator in daily work. As an option, fans are available to cool the operator under the roof in hot conditions at high lift heights.
The control panel can optionally be mounted at the load end or at the load and mast end – the operating logic is maintained.
Items such as terminals, scanners, clipboards, writing supports, or individual fixtures can be fitted. The attachment bars are mounted on the left and right-hand side of the mast as well as at the load end on the overhead guard.
The load area is secured with a protective cage. It is therefore safe for the user to access the area and pick orders from here.
The Linde BlueSpot increases safety during operation, as the LED spotlight makes trucks silently visible.
Large mirrors in both directions as well as work lights support the operator in daily work. As an option, fans are available to cool the operator under the roof in hot conditions at high lift heights.
