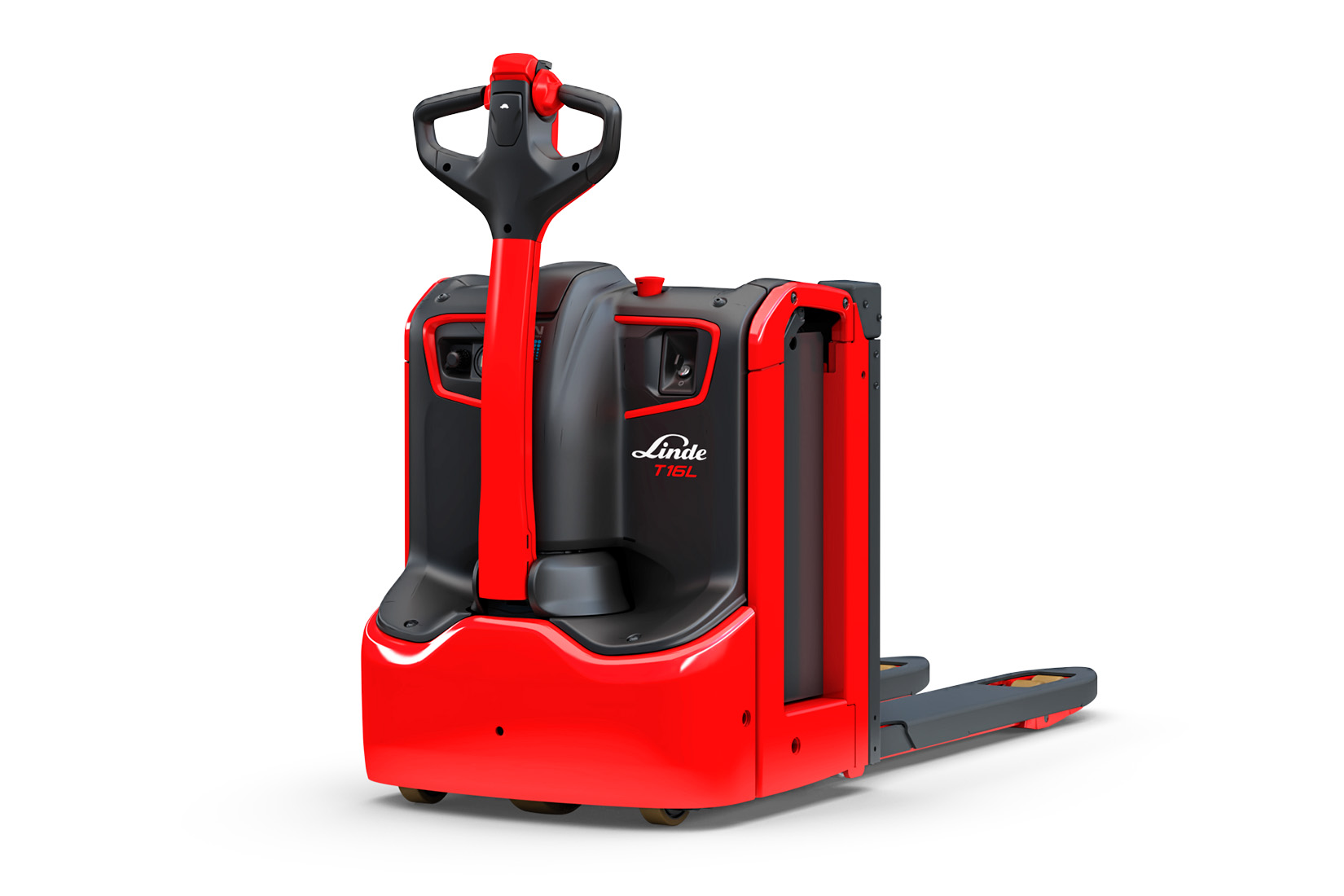

Linde T16L | Effective pallet truck

DESCRIPTION

With its powerful motor, the T16 L pallet truck reaches speeds of up to 6 km/h, both loaded and unloaded, and easily handles gradients. The rounded chassis, the low skirt and the long, low-mounted tiller provide maximum protection. With a lift height of up to 675 mm, the T16 L enables back- and knee-friendly work. The optional Autolift function automatically adjusts the lift height in proportion to the increasing height of the load. The intuitively designed tiller head includes all control functions and ensures easy handling. The robust chassis protects the truck from damage in tough continuous operation.
SAFETY
The long tiller with deep mounting point provides a large safety distance between the driver and the truck. A deep skirt covers the wheels, effectively protecting the driver’s feet from injury. The emergency stop button is easily accessible and increases safety in case of emergency. The tiller head of the T16 L is designed to enclose the driver’s hands and protect them. When cornering, the truck adjusts its speed directly to the steering angle, protecting the driver from risky maneuvers.
- Long, low mounted tiller
- Deep skirt as foot guard
- Easily accessible emergency stop button
- Tiller with hand protection
- Speed adjustment in curves
ERGONOMICS
The T16 L offers a lifting height of up to 675 mm. This means that the driver does not have to bend their knees or back when loading. The ergonomically designed tiller head contains all operating functions and can be steered with one hand, even when wearing gloves. Travel speed and steering resistance automatically and continuously adjust to the steering angle. Additional switches can be fitted as an option, allowing easy control of the lift height. As a further option, the T16 L can be equipped with an Autolift function that automatically adjusts the fork height to the load on the forks. This eliminates the need for manual operation of the lift and the driver is able to commission at optimum height without unnecessary interruption. In addition, holders are available for important work equipment such as scanners, clipboards or shrink wrap.
- Working height that is easy on the back and knees
- Ergonomically designed tiller head
- Automatic speed adjustment
- Optional lift button facilitates control of the lift height
- Optional Autolift function for lift adjustment
Handling
With or without a load, the T16 L reaches speeds of up to 6 km/h. Even fully loaded, it can handle the most difficult gradients, making it ideal for a wide range of operating conditions. It lifts up to 800 kg to maximum height while providing a high level of driver safety. Its long, low-mounted tiller and electric power steering ensure optimal maneuverability in tight spaces. The castor wheels automatically adjust to the load, driving situation and speed, ensuring high driving stability and good traction on uneven ground. With the creep speed function (optional) and Linde Proportional Speed, the T16 L can be safely maneuvered even in the tightest spaces.
- Speed up to 6 km/h
- High gradeability
- Load capacity up to 800 kg at maximum height
- Maneuverability in tight spaces
- Creep speed function (optional) and proportional speed control
Service
Thanks to its robust design, the T16 L features low maintenance costs and ensures a long service life even under intensive operating conditions. The CAN bus structure enables fast service processes and rapid truck diagnostics, which significantly reduces downtime. For fast maintenance, the essential components of the T16 L are easily accessible. All covers are optimally protected from damage by the contours of the chassis. The tiller arm is reinforced with a steel insert, which provides additional robustness and minimizes maintenance requirements.
- Robust construction for low maintenance costs
- CAN bus structure for fast diagnostics
- Easy access to the technical compartment
- Covers optimally protected by chassis contours
- Steel reinforced tiller arm

Optional Equipment

Lateral Battery Change
Integrated Charger
Lithium-ION Technology
Cold store variant
Load Backrest
Autolift
Creep speed function

Lateral Battery Change

Lateral battery removal with roller bearings allows for quick changes, making it more efficient especially for use in multi-shift operation.

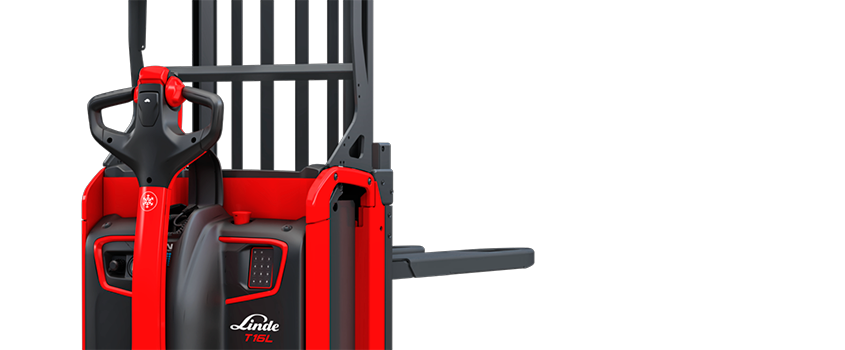

Integrated Charger

The integrated charger increases flexibility: The pallet truck can be charged nearly everywhere and at any time.

Lithium-ION Technology

In addition to the classic lead-acid batteries, the trucks can be equipped with N.C. Nielsen Lithium-ION batteries.

Cold store variant

The cold store variant guarantees full availability and performance of the truck down to minus 35 degrees.

Load Backrest

The load backrest ensures that loads cannot slip backwards and fall on the driver when the load carrier is raised.

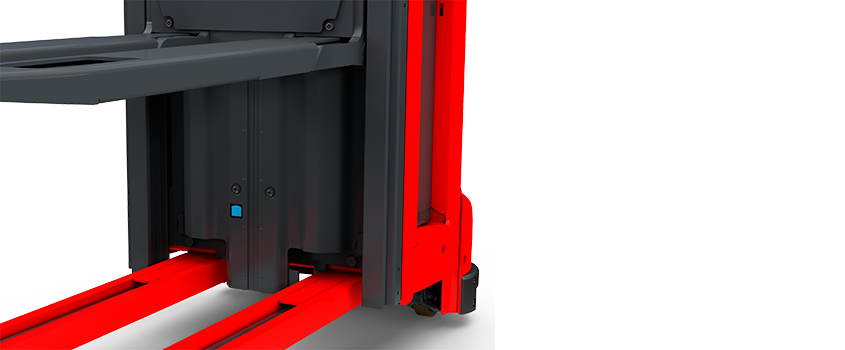

Autolift

Sensors on the truck automatically adjust the order picking lift during loading. The load height for the driver thus remains the same even when goods are stacked on the pallet.

Creep speed function

The creep speed function slows down the truck and makes difficult maneuvers in narrow aisles easier and safer.

Lateral Battery Change

Lateral battery removal with roller bearings allows for quick changes, making it more efficient especially for use in multi-shift operation.
Integrated Charger

The integrated charger increases flexibility: The pallet truck can be charged nearly everywhere and at any time.
Lithium-ION Technology

In addition to the classic lead-acid batteries, the trucks can be equipped with N.C. Nielsen Lithium-ION batteries.
Cold store variant

The cold store variant guarantees full availability and performance of the truck down to minus 35 degrees.
Load Backrest

The load backrest ensures that loads cannot slip backwards and fall on the driver when the load carrier is raised.
Autolift

Sensors on the truck automatically adjust the order picking lift during loading. The load height for the driver thus remains the same even when goods are stacked on the pallet.
Creep speed function

The creep speed function slows down the truck and makes difficult maneuvers in narrow aisles easier and safer.
