  • Description

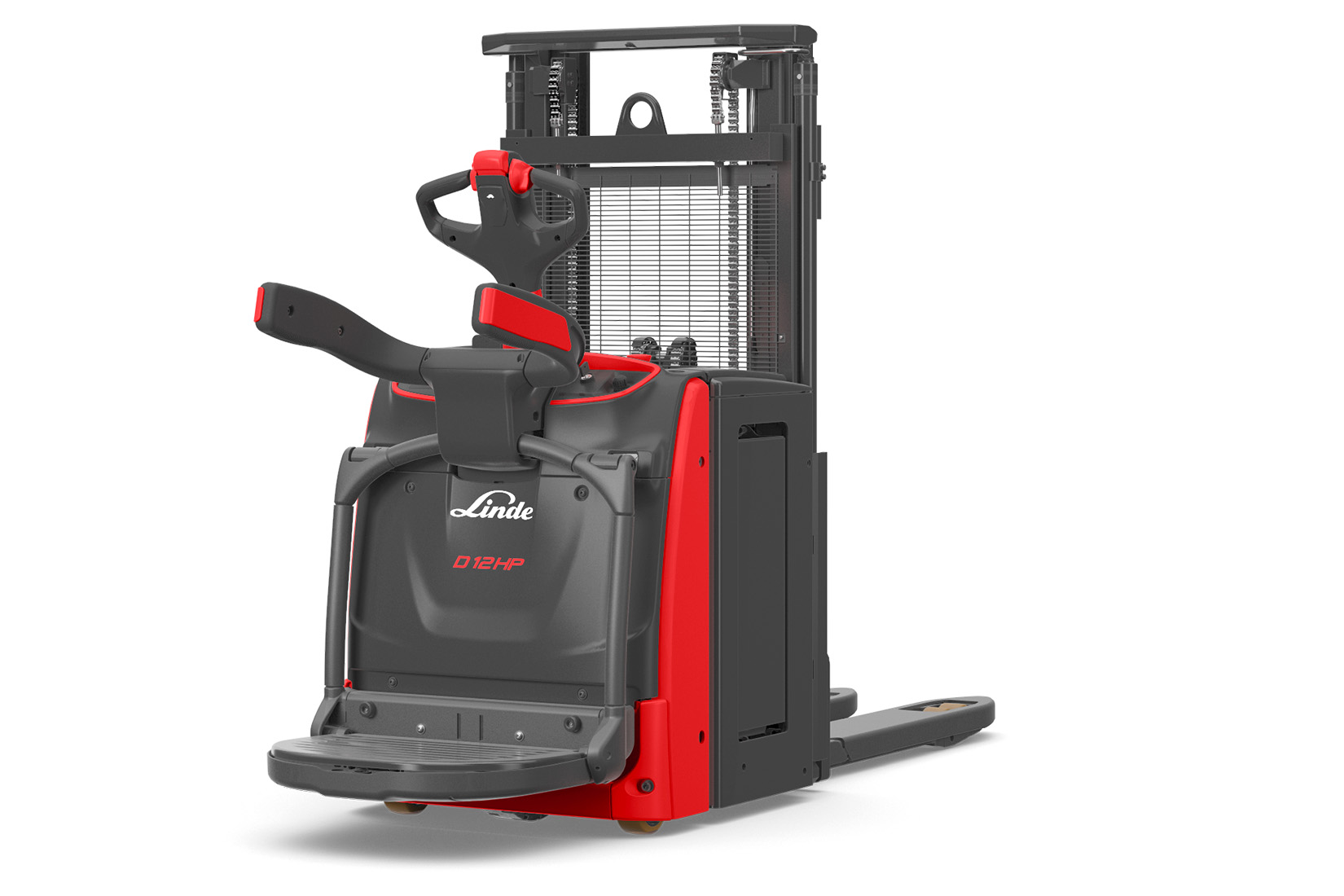

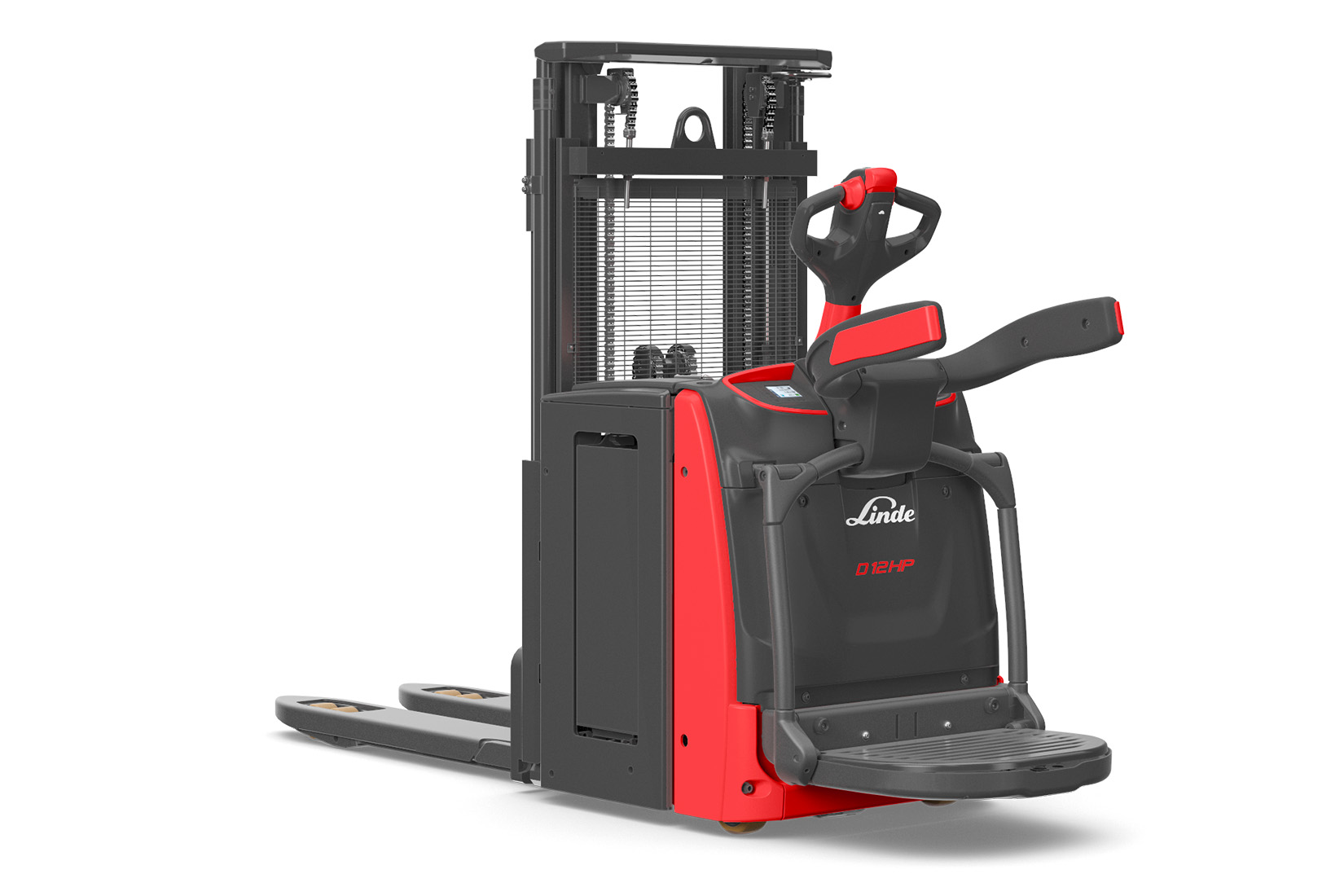

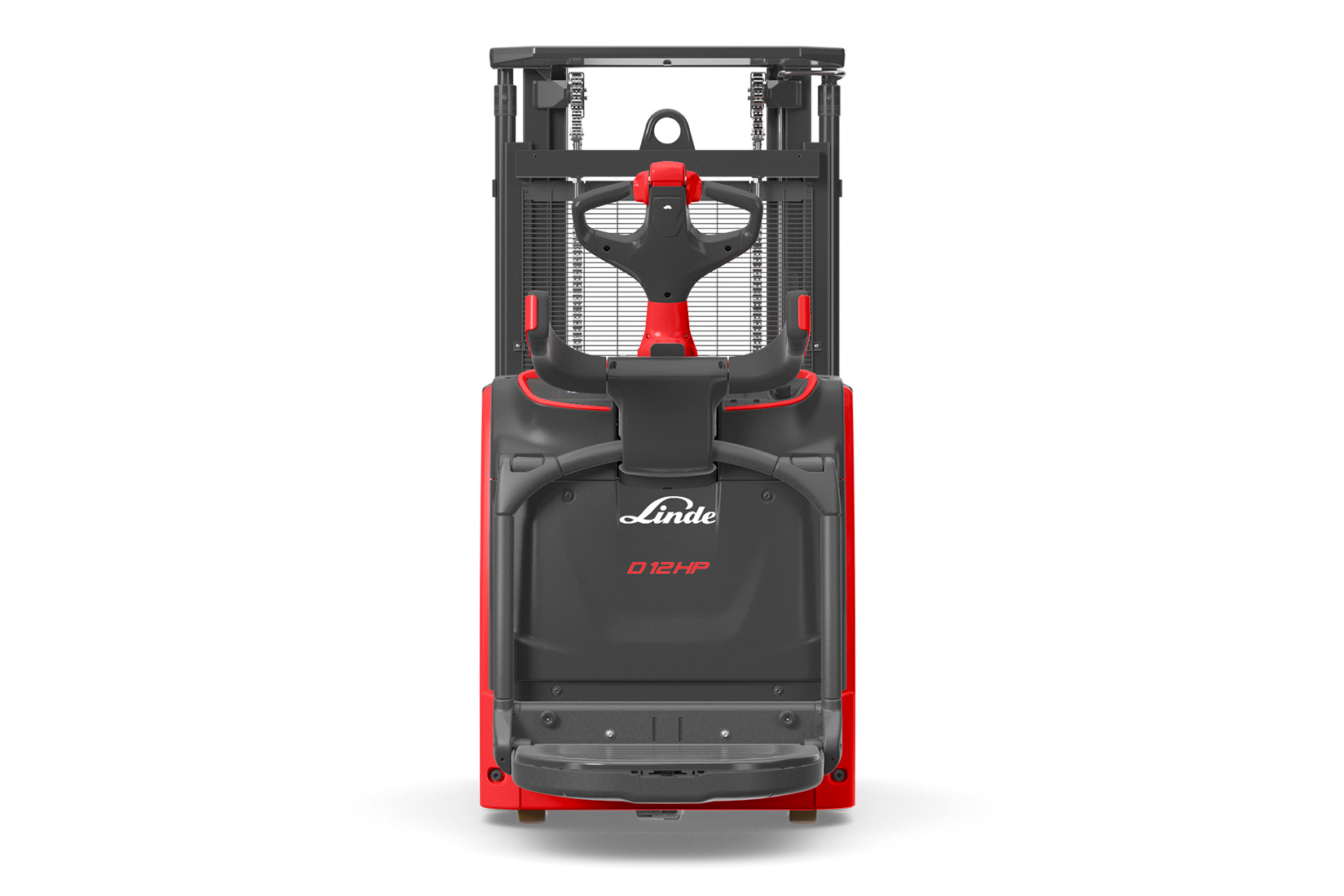

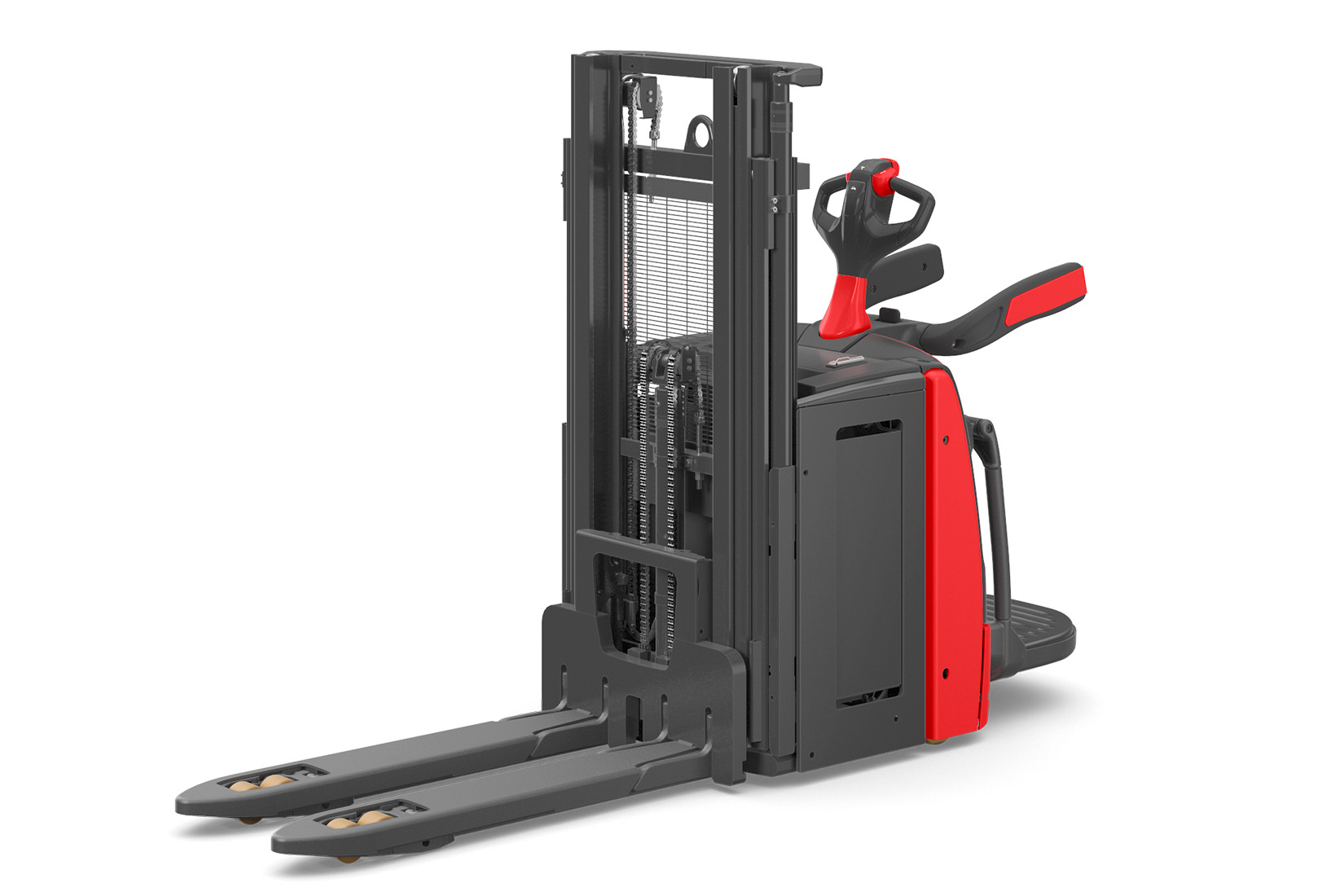

    The D12 HP AP double-deck pallet stackers are high-performance vehicles for the simultaneous transport of up to two load carriers. They show their strengths in the loading and unloading of multi-level lorries, the rapid storage and retrieval of goods, and in order picking.

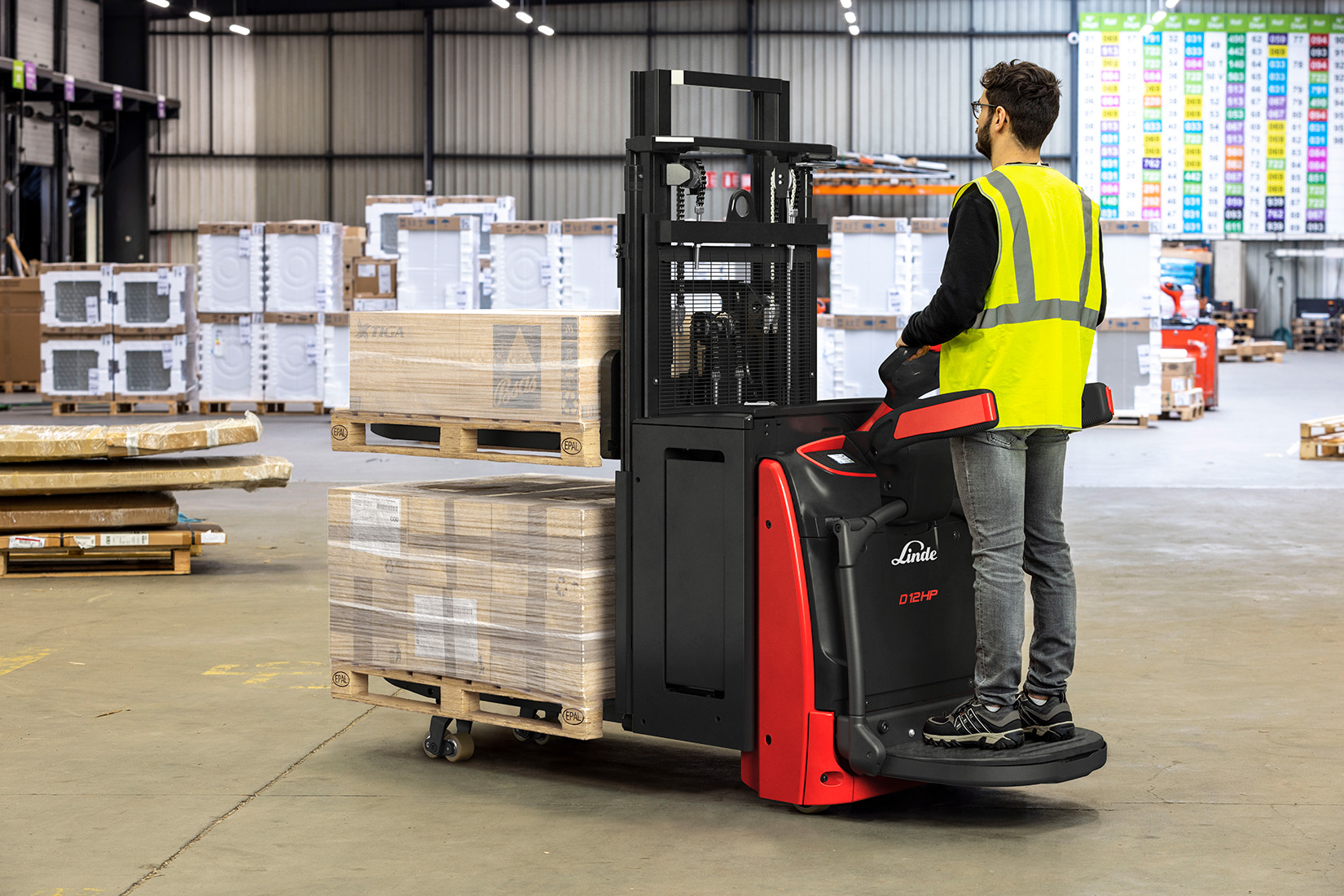

    Thanks to their folding stand-on platform, they can be used flexibly as a pedestrian or stand-on model. With the platform folded up, they are particularly maneuverable and ideally suited for use in confined spaces. With the platform folded down, they are ideal for efficient transport over short and medium distances. The stand-on platform is decoupled from the chassis and fully suspended to increase the comfort and ergonomics for the operator. An innovative castor wheel system ensures maximum stability at all times during all handling tasks. As high-performance models, the D12 HP AP boost handling performance through high travel and lifting speeds. The Linde OptiLift assistance system ensures very precise load handling and additionally increases the working speed.

  • Safety

    During transport, the D12 HP AP's fold-up side bars protect the operator from injury. Additional safety is provided by the special design of the stand-on platform and steering system, which keeps the operator's body within the vehicle contours at all times. When cornering, the Linde Curve Assist system automatically adjusts the speed to the steering angle to prevent risky maneuvers. As soon as the driver stops using the butterfly lever (dead man's switch), the vehicle stops automatically. A soft landing function allows the vehicle's forks to touch down gently on the ground. This ensures that the load is not damaged in any way. Optional load backrests are available at different heights to protect the driver from loads sliding back.

    • Fold up side bars
    • Speed adjustment in curves
    • Sensitive dead man´s switch
    • Soft landing function to protect the load
    • Load backrests in different heights

  • Ergonomics

    For the D12 HP AP, both the foldable driver's platform and the tiller are decoupled from the chassis and fully suspended. This protects the operator from shocks and vibrations in both drive and pedestrian modes. The electric power steering enables effortless vehicle maneuvers even in narrow, difficult-to-navigate areas. To this end, travel speed and steering resistance are automatically and continuously adjusted to the steering angle. The D12 HP AP also features the Linde OptiLift assistance system. With its help, the driver executes all lifting movements precisely and intuitively, which allows fast and at the same time maximally ergonomic load handling. A multifunction display shows all relevant information on the vehicle status. The design of the battery cover provides sufficient space for work utensils such as wrapping paper, gloves and writing materials.

    • Fully decoupled driver platform
    • Electric power steering
    • Linde OptiLift assistance system
    • Vehicle speed adjustment
    • Multifunction display

  • Handling

    Thanks to the foldable operator platform, the D12 HP AP can be used in either drive or pedestrian mode. With the platform folded in, they are particularly maneuverable and ideally suited for confined environments. As high-performance vehicles, they feature a powerful 3 kW three-phase AC motor that enables rapid acceleration and a top speed of up to 14 km/h (without load). Up to 7.5 km/h is possible with a double load. A powerful lift motor ensures faster lifting movements. More power when handling two pallets is provided by the optional Linde Speed Management assistance system. A 5-point configuration with optional electrically controlled and hydraulically operated castor wheels on both sides, as well as a center-mounted drive wheel, provides consistent traction and stability, especially when traversing ramps or uneven ground. The ergonomic double handle on the tiller includes all important vehicle functions. The D12 HP AP are available with a new generation of Li-ION batteries, which can be complemented with an on-board charger for more efficient charging management. Three independent braking systems ensure driver and load safety. A start-up assistant prevents unintentional rolling backwards on sloping ground.

    • Pedestrian and travel operation possible
    • High travel and lifting speeds
    • Linde Speed Management for double-deck loading
    • 5-point configuration for increased stability
    • New generation of Li-ION batteries

  • Service

    The D12 HP AP are permanently available thanks to their maintenance-free 3kW three-phase motors. This enables long service intervals and constantly low maintenance costs. Robust cladding parts and a stable chassis ensure durability even under tough operating conditions. The vehicle was developed according to the "design to service" principle. This means service technicians have fast access to all relevant components. Thanks to the innovative CAN bus structure, they can access all vehicle data via a plug-in diagnostic unit. The electric-electronic architecture allows software updates and new functions to be remotely installed on the vehicle at any time when it is equipped with an optional data transmission unit.

    • Maintenance-free motor
    • Robust construction
    • CAN bus architecture
    • Easily accessible components
    • Modern E/E architecture

Optional Equipment

  • Speed Management
  • Different mast heights
  • NCN Lithium-ION-teknologi
  • Mechanically sprung castor wheels with hydraulic damper
  • Load backrest
  • ColdStore-variant

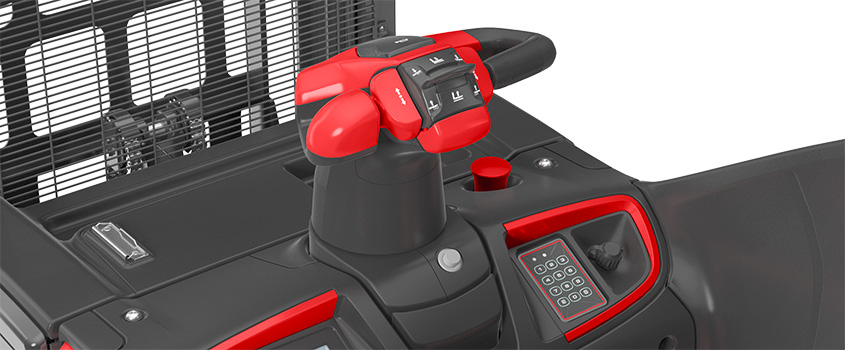

Speed Management

Speed Management

In double-deck operation, Linde Speed Management adjusts the vehicle speed depending on the load weight and lifting height, thus guaranteeing maximum performance and safety.

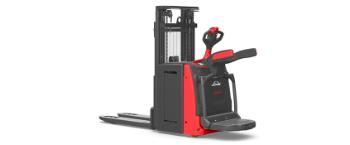

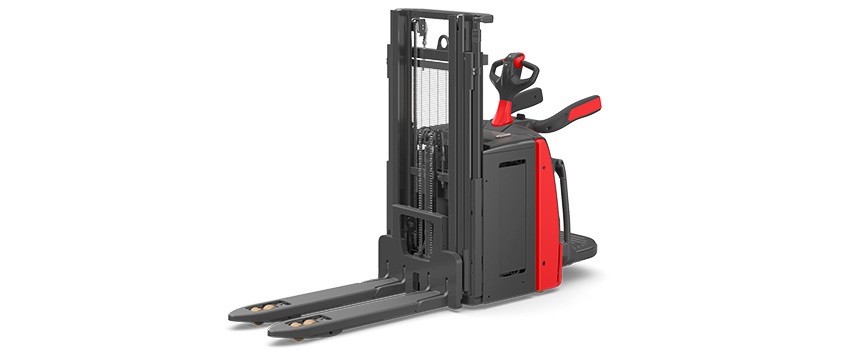

Different mast heights

Different mast heights

Various mast types and heights are available. The vehicle can thus be precisely adapted to the desired area of application.

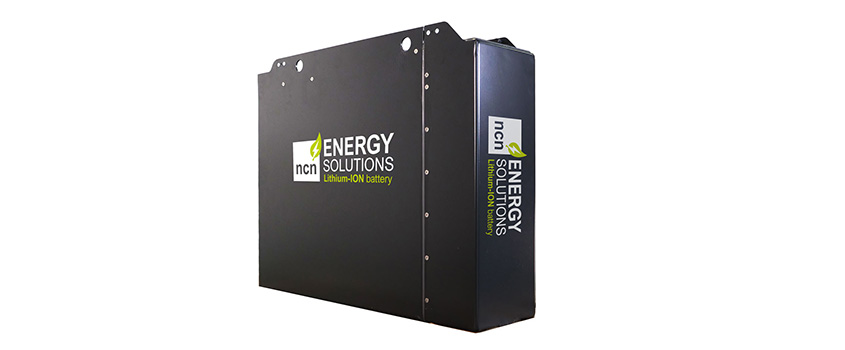

NCN Lithium-ION-teknologi

NCN Lithium-ION-teknologi

In addition to the classic lead-acid batteries, the new generation of NCN lithium-ION batteries is also available.

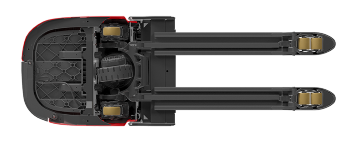

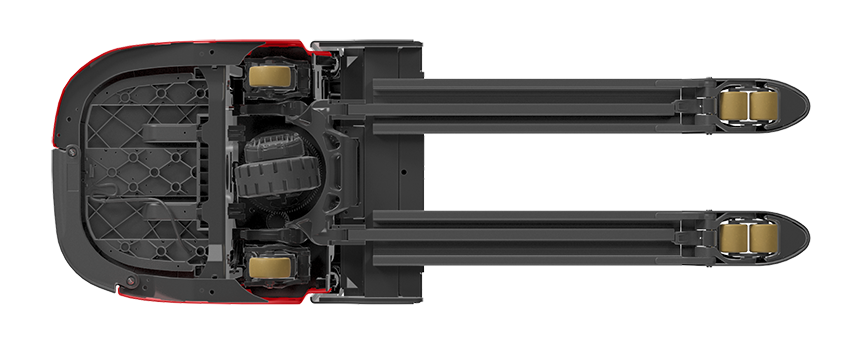

Mechanically sprung castor wheels with hydraulic damper

Mechanically sprung castor wheels with hydraulic damper

They provide constant ground contact for an optimal balance of stability and traction in all applications.

Load backrest

Load backrest

Load backrests in various heights ensure that loads do not slide backwards and fall onto the driver when the load carrier is raised.

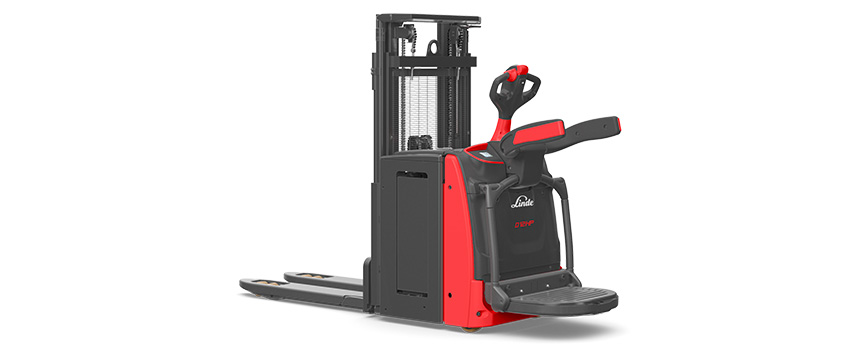

ColdStore-variant

ColdStore-variant

The cold store version guarantees full availability and performance of the truck up to minus 35° Celsius.

  • Speed Management

    In double-deck operation, Linde Speed Management adjusts the vehicle speed depending on the load weight and lifting height, thus guaranteeing maximum performance and safety.

    Speed Management
  • Different mast heights

    Various mast types and heights are available. The vehicle can thus be precisely adapted to the desired area of application.

    Different mast heights
  • NCN Lithium-ION-teknologi

    In addition to the classic lead-acid batteries, the new generation of NCN lithium-ION batteries is also available.

    NCN Lithium-ION-teknologi
  • Mechanically sprung castor wheels with hydraulic damper

    They provide constant ground contact for an optimal balance of stability and traction in all applications.

    Mechanically sprung castor wheels with hydraulic damper
  • Load backrest

    Load backrests in various heights ensure that loads do not slide backwards and fall onto the driver when the load carrier is raised.

    Load backrest
  • ColdStore-variant

    The cold store version guarantees full availability and performance of the truck up to minus 35° Celsius.

    ColdStore-variant
